Barcode Comparison Table

The table below shows the list of linear barcodes supported by Stimulsoft Reports.

-

Type Length Check symbols Checksum algorithm 0-9 A-Z a-z other symbols
UPC-A 12 1 modulo-10 +
UPC-E 8 1 modulo-10 +
EAN-13 13 1 modulo-10 +
EAN-8 8 1 modulo-10 +
EAN-128a var 1 modulo-103 + + ASCII 0 to 95
EAN-128b var 1 modulo-103 + + + ASCII 32 to 127
EAN-128c var 1 modulo-103 +
ITF-14 14 1 modulo-10 +
JAN-13 13 1 modulo-10 +
JAN-8 8 1 modulo-10 +
ISBN-10 10 1 modulo-10 +
ISBN-13 13 1 modulo-10 +
Pharmacode 1..6 - - int 3..131070
Plessey var 0-2 modulo-10/11 + A B C D E F
Msi var 0-2 modulo-10/11 +
2of5 Standard var - - +
2of5 Interleaved var - - +
FIM 1 - - A B C D
Codabar var - - + - $ : / . +
Postnet 5, 9, 11 1 modulo-10 +
Australia Post 10[+var] 4 ReedSolomon +
Code 11 var 0-2, A modulo-11 + -
Code 39 var 0-1 modulo-43 + + - . $ / + % space
Code 39 ext var 0-1 modulo-43 + + + full ASCII
Code 93 var 2 modulo-47 + + -.$/+% space
Code 93 ext var 2 modulo-47 + + + full ASCII
Code128a var 1 modulo-103 + + ASCII 0 to 95
Code128b var 1 modulo-103 + + + ASCII 32 to 127
Code128c var 1 modulo-103 +

Explanation:

“Length” - is the data length, it is the number of characters, which can the barcode can encode; “var” means the variable length.

“Check symbols” - possible number of check digits; “A” means that number of check digits can be chosen automatically.

“Checksum algorithm” - the algorithm for calculating check digits. The information is provided for general information only.

“0-9”, “A-Z”, “a-z” - ranges of symbols; + means that the barcode can encode characters of this range.

“other symbols” - this column indicates other characters that can be encoded by the barcode, and which are not included in the previous three ranges.

Barcode Sizes

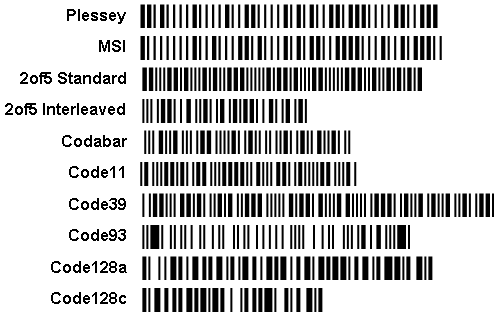

Below is a comparison of barcodes of variable length, which can encode the numbers from 0 to 9. All barcodes have the same input data - the row of numbers “0123456789» (“ABCDEFGHIJK”), and the same module 20, other parameters set by default.

The image shows: if you need to select a barcode with the minimum size, then when encoding only numbers, 2of5Interleaved and Code128 barcodes are more suitable.

Coding English Uppercase Letters

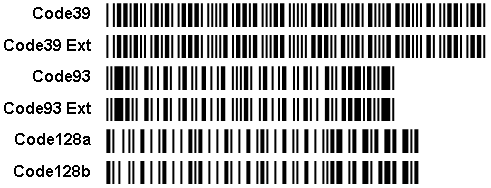

Below is a comparison of the barcodes of variable length which can encode uppercase English letters. All barcodes have the same input data - the row has “ABCDEFGHIJK”, and the same module 20, other parameters set by default. The image shows: if you need to select a barcode with the minimum size, then when encoding numbers and capital English letters, Code 93 and Code128a / Code128b barcodes are more suitable.

Coding English Lowercase Letters

Below is a comparison of the barcodes of variable length, which can encode lowercase English letters. All barcodes have the same input data - the row has “abcdefghijk”, and the same module 20, other parameters set by default.

The image shows: if you need to select a barcode with the minimum size, then when encoding numbers and upper and lower English letters, the Code128b barcode is more suitable.
